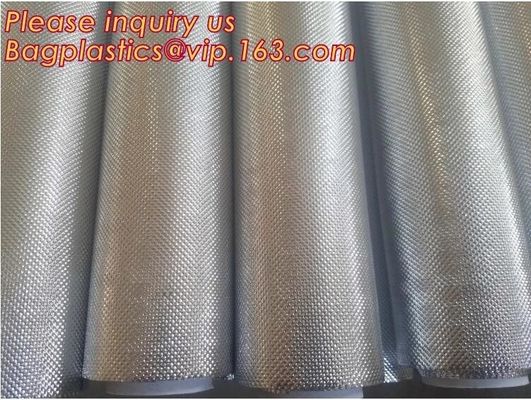

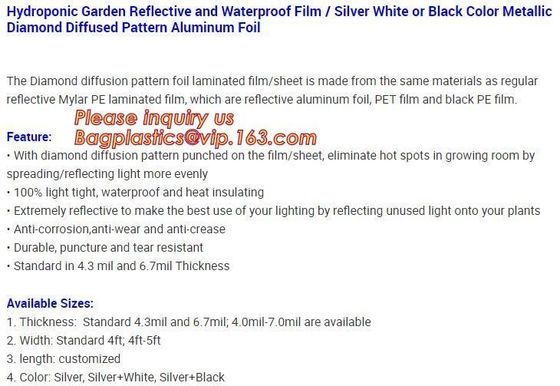

Hydroponic Garden reflective waterproof film,silver metallic diamond diffuse pattern aluminium foil,12 micron Metallized

Multi layers aluminum foil insulations for roofing, wall and floor

Aluminum Bubble Foil Heat Reflective Insulation Sheets for roof floor an dwall

Product Introduction:

The product consists of three layers of aluminum foil with plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
It is an economical solution for a wide range of industrial, manufacturing and consumer applications.

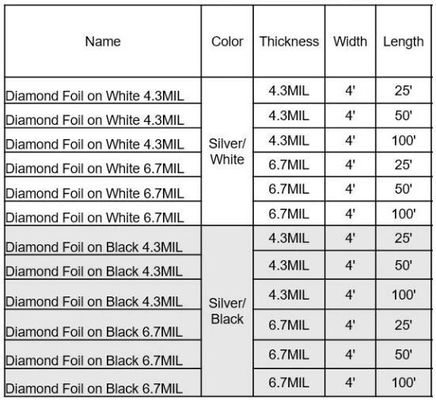

Data Sheet:

Installation methods and Installation Projects:

• Measure the metal roof to determine the amount of bubble foil wrap insulation required for the project. Purchase approximately 10 to 15 percent more product than required to account for overlapping and to provide the proper air gap between the purlins -- the horizontal lengths of wood that support the roof panels between the rafters.
• Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin. Continue to unroll the foil insulation and attach it the remaining purlins, paying attention to allow the insulation to sag at least 1 inch between the horizontal members. The sagging provides an air gap that raises the insulation’s efficiency.
• Continue to attach the Aluminum foil bubble insulation to the metal roofing purloins, overlapping the adjoining sheets 2 inches as you go. This is a temporary hold to keep the bubble foil wrap in place while you prepare the next step.
• Secure the bubble foil to the framing members with furring strips. Attach the furring strips perpendicular to the purloins every 24 inches to the framing members with 2-inch metal screws, paying attention to not disrupt the insulation’s sagging. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
• Cover the seams of the bubble insulation with foil tape.

Application:

Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.
1. Thermal insulation and light inflecting in the constrction and protection for both cold winter and water piper
2. Separation of refrigerator,warm keeping for center air-conditioned,refrigerator and other home appliances
3. Thermal insulation,sound absorption and noise reduction for car ,train, refrigerator car and laboratory, moisture proof cushion for traveling.

Building insulation material for construction is a brand new heat insulation product manufactured of polyethylene bubble/foam sheet faced with aluminium foil on the one or two sides. It can reflect 97% radiant heat and reduces energy costs used in winter heating and summer cooling. Reflective Foil thermal insulation is only a few millimeters thick, its two sides of aluminium foil reflects more than 97% thermal energy that reaches it .In summer, almost all the sunlight and heat is bounced back into the air, Keeping the heat out of the air conditioned building. In winter, Almost all the heat generated inside the building is retained. Also, The bubble/foam sheet in between the aluminium foil offer thousands of empety air cells, which makes the heat more difficult to pass through.1) Thickness: 0.017-0.03MM
2) Width: 300MM 450MM 500MM
3) Length: as your request
4) Color: transparent/clear,black,green,and so on
5) Net weight: on buyer's option
6) Packing: cartons or pallets.
Product features:
1.100% New material and accept sample order.
2.Excellence and beautiful, the high grade product.
3.Easy to be pulled out and cut.
4. Transparency and no drape and even thickness.
