Product Details:
|
| Hose: | Twin Welding Hose | TUBING: | PVC Fire Hose |
|---|
Application
Welding machine, architecture and lacquer factory, all kinds of metal-welding and cutting machine to transport Oxygen and Acetylene.
Features
High pressure resistance, color resistance, good abrasion resistant and excellent resilience, different color hose for easy use.
Temperature Range -5℃ to +65℃
Specification
| Inch Size | Metric Size | Length | MAX.W.P. | MAX.B.P. | Weight | |
| INCH | I.D. mm | O.D. mm | M/ROLL | At 23℃ | g/m | |
| Bar | Bar | |||||
| 1/4" | 6.5 | 12.5 | 28 | 20 | 60 | 120 |
| 5/16" | 8 | 14 | 28 | 20 | 60 | 140 |
| 3/8" | 10 | 16 | 28 | 20 | 60 | 165 |
| 1/2" | 13 | 20 | 28 | 20 | 60 | 230 |
Application
For pressured delivery of liquids in agriculture irrigation, mining, construction dewatering and submersible pumping.
Features

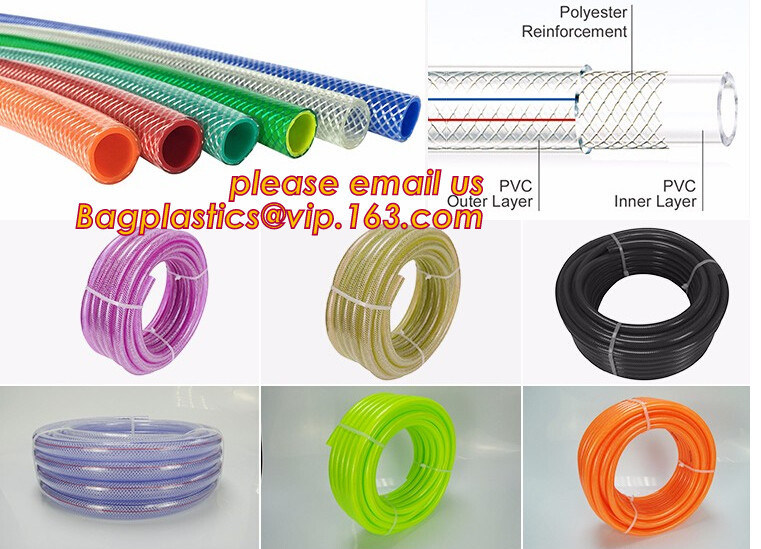

(1).Flexible PVC with high grade strength polyester yarn reinforcement, lightweight, aging resistant, abrasion resistant and compact for economical storage.
(2). We supplies a range of high pressure, high performance agriculture irrigation pipe manufactured to meet many national and international standards.We also offer a range of water pipe accessories including couplings, branch pipes, jet spray nozzles and standpipes.
(3).Light weight, good flexibility, bright color, smooth
(4).Capable for keeping the flexibility and elasticity under the low-temperature water
(5).Resistant to abrasion, corrosion, high pressure and terrible weather.
(6).Ideal durable hose for irrigation and drainage in the farmland and garden. cement filing, river-way sand extraction, water discharge in the construction site, road building and so on
Temperature Range:-5℃ to +65℃
Specification
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.047 | 1.20 | 0.15 | 8 | 115 | 100 | 300 |
| 1-1/4 | 32 | 0.047 | 1.20 | 0.17 | 7 | 100 | 100 | 300 |
| 1-1/2 | 38 | 0.049 | 1.25 | 0.19 | 7 | 100 | 100 | 300 |
| 2 | 51 | 0.043 | 1.10 | 0.22 | 4 | 60 | 100 | 300 |
| 0.053 | 1.35 | 0.30 | 6 | 90 | 100 | 300 | ||
| 0.069 | 1.75 | 0.40 | 10 | 145 | 100 | 300 | ||
| 2-1/2 | 64 | 0.047 | 1.20 | 0.30 | 4 | 60 | 100 | 300 |
| 0.057 | 1.45 | 0.40 | 6 | 90 | 100 | 300 | ||
| 0.085 | 2.15 | 0.54 | 10 | 145 | 100 | 300 | ||
| 3 | 76 | 0.047 | 1.20 | 0.35 | 4 | 60 | 100 | 300 |
| 0.057 | 1.45 | 0.50 | 6 | 90 | 100 | 300 | ||
| 0.091 | 2.30 | 0.80 | 10 | 145 | 100 | 300 | ||
| 4 | 102 | 0.047 | 1.20 | 0.53 | 3 | 45 | 100 | 300 |
| 0.053 | 1.35 | 0.60 | 4 | 60 | 100 | 300 | ||
| 0.071 | 1.80 | 0.80 | 6 | 90 | 100 | 300 | ||
| 0.087 | 2.20 | 1.00 | 10 | 145 | 100 | 300 | ||
| 5 | 127 | 0.053 | 1.35 | 0.75 | 4 | 60 | 100 | 300 |
| 0.075 | 1.90 | 1.08 | 6 | 90 | 100 | 300 | ||
| 6 | 153 | 0.053 | 1.35 | 0.90 | 4 | 145 | 100 | 300 |
| 0.094 | 2.40 | 1.60 | 6 | 90 | 100 | 300 | ||
| 0.110 | 2.80 | 2.00 | 8 | 120 | 50 | 150 | ||
| 8 | 203 | 0.071 | 1.80 | 1.60 | 3 | 45 | 100 | 300 |
| 0.124 | 3.15 | 2.80 | 6 | 90 | 50 | 150 | ||
| 10 | 254 | 0.094 | 2.40 | 2.60 | 3 | 45 | 50 | 150 |
| 12 | 305 | 0.094 | 2.40 | 3.10 | 2 | 30 | 50 | 150 |
Model No.: bagplastics at vip.163.com
PVC Fiber Reinforced Hose: PVC Garden Hose
Contact Person: Mr. NEIL FAN
Tel: 0086-137-8096-4661
Fax: 86-535-320-6618
